Deye Residential Hybrid Inverters: A Practical Guide from 3.6 kW to 25 kW

Deye Residential Hybrid Inverters: A Practical Guide from 3.6 kW to 25 kW

Weekly Product Brief | 23 September 2026 | Beijing Time

Executive Takeaway

Deye's residential hybrid inverter portfolio is unusually broad: it spans compact single-phase systems for essential loads, low-voltage three-phase platforms for mainstream European homes, high-power low-voltage models for villas and EV charging, and high-voltage models for larger arrays and lower battery-side current. The right choice is therefore not simply "the biggest inverter available"; it is the model that matches the property's phase arrangement, peak load, battery architecture, backup scope and local grid code.

Why This Product Line Matters

A hybrid inverter sits at the center of a residential solar-plus-storage system. It manages PV generation, battery charging and discharging, grid exchange, backup loads and—in many Deye configurations—generator integration and time-of-use scheduling. Deye's range lets installers keep a common operating philosophy while serving very different homes.

The product family's commercial advantage is breadth. A distributor can address a small single-phase retrofit, a standard three-phase home, a large villa with a heat pump and EV charger, or a high-voltage battery project without changing brands at every power step.

Product Line at a Glance

Specifications vary by exact model and market. Project design must use the current datasheet, local grid-code approval and the battery manufacturer's compatibility list.

How to Choose the Correct Power Class

3.6–5 kW: Essential Loads and Smaller Homes

This class is best when the backup objective is selective: lighting, refrigeration, communications, entertainment and a limited number of sockets. It is also a sensible match for smaller single-phase PV arrays. The commercial mistake to avoid is promising whole-home backup when the property contains electric heating, a large cooker or an EV charger.

6–8 kW: The Mainstream Residential Sweet Spot

For many detached homes, 6–8 kW gives a better balance between cost and usable backup power. It can support a broader essential-load panel and moderate daytime self-consumption without forcing the buyer into a very large battery. Installers should still check motor-starting loads, phase imbalance and whether the customer expects simultaneous operation of multiple large appliances.

10–12 kW: Larger Homes, Heat Pumps and Deeper Backup

The 10–12 kW class is appropriate where the customer wants more than basic resilience. Typical drivers include a heat pump, electric water heating, workshop loads, a larger rooftop array or a higher evening peak. This is also the point where three-phase design becomes especially important in Europe: the inverter's total rating is not the same as unlimited power on any single phase.

14–20 kW: Villas, EV Charging and Whole-Home Ambition

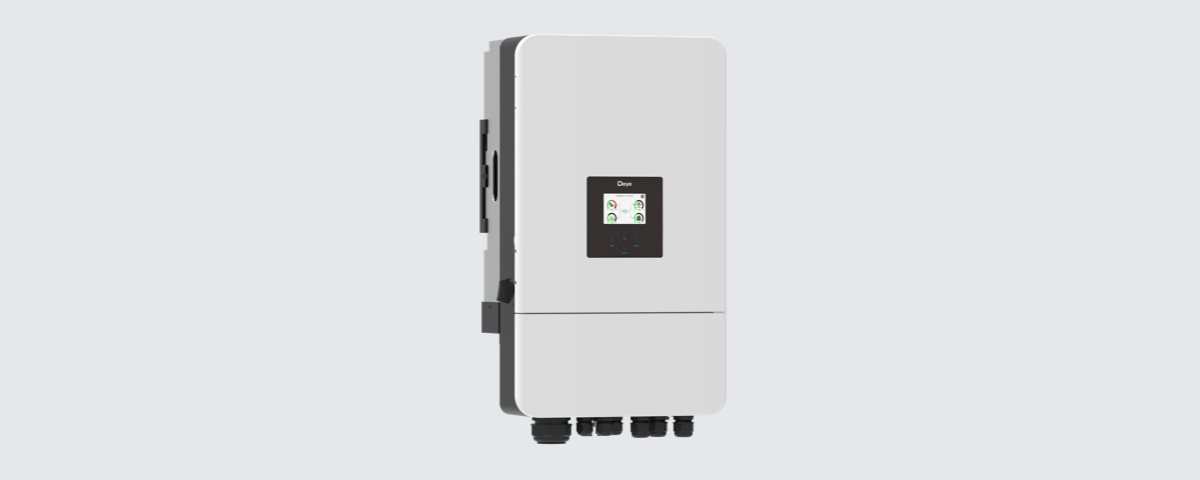

Deye's high-power low-voltage SG05LP3 family extends residential design to 20 kW. It supports 100% unbalanced output, AC coupling for existing solar, up to ten units in parallel and charging/discharging current up to 350 A on the 20 kW model. This class is compelling for large villas and high-load homes, but it demands careful cable sizing, battery current capability, protection coordination and thermal design. An inverter rating should never be used as a shortcut around battery and installation engineering.

Low Voltage or High Voltage?

Choose Low Voltage When Flexibility Leads

The 40–60 V platforms are attractive when installers value a familiar 48 V battery ecosystem, easier modular expansion and broad battery availability. They are especially practical for retrofit and backup-focused projects. The trade-off is high current at higher power, which raises the importance of short cable runs, correct conductor sizing, robust terminals and battery systems that can continuously deliver the required current.

Choose High Voltage When System Efficiency and Scale Lead

The SG01HP3 family uses a 160–700 V battery range and extends to 25 kW. A high-voltage stack reduces battery-side current for the same power level and can be advantageous for larger systems. The trade-off is tighter ecosystem matching: the battery, BMS, inverter firmware and approved communications protocol must be treated as one system rather than as interchangeable boxes.

Features That Matter in Real Installations

• 100% unbalanced three-phase output: useful where household loads are not evenly distributed, but each phase still has model-specific limits.
• AC coupling: valuable for retrofitting storage to an existing PV system instead of replacing the original solar inverter.
• Time-of-use control: six configurable charging and discharging periods support tariff optimization and reserve management.
• Generator support: selected Deye hybrid models can store energy from a diesel generator, useful for weak-grid and resilience applications.
• Parallel operation: selected families support up to ten inverters in parallel, creating a path from large residential to light-commercial scale.
• Deye Cloud: remote monitoring and energy-management functions help installers diagnose performance and help owners understand energy flows.

The 2026 Direction: A More Integrated Home Energy Platform

Deye's 22 September 2026 all-in-one home ESS announcement shows how the inverter line is evolving from a standalone conversion device into a complete home-energy platform. The announced architecture covers 3.6–12 kW single-phase and 5–20 kW three-phase inverter options, with stackable 16 kWh battery modules, up to three inverter modules in parallel, IP66 outdoor protection, optional low-temperature heating and LoRa-based zero-export control.

The practical implication for distributors is clear: buyers increasingly want a tested system, not a collection of parts. The winning offer combines inverter, battery, protection, monitoring, commissioning and after-sales support in one bill of materials.

European Buying Checklist

1. Country and grid operator.
2. Single-phase or three-phase connection.
3. Required continuous and peak backup loads.
4. Low-voltage or high-voltage battery preference.
5. New installation or AC-coupled retrofit.
6. Required certifications, monitoring accessories and delivery date.

Price comparisons are meaningful only after these variables are fixed. Two inverters with the same kilowatt rating can have very different project value once battery current, backup behavior, certification, accessories and commissioning are included.

Official Product References

• Deye residential ESS solution
• Deye SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2
• Deye SUN-14/15/16/18/20K-SG05LP3-EU-SM2
• Deye hybrid inverter product datasheets
• Deye all-in-one residential ESS announcement, 22 September 2026

Product image source: Official Deye marketing resources. Product and trademark rights belong to their respective owner.
